Broadcast Camera and Audio Visual Cables

Black  Cat manufactures and supplies professional camera cable assemblies for the
major manufacturers of professional camera systems. We use only the highest quality components from the tightly specified coaxial and interconnect transmission lines that make up our UL listed cable to the highest quality connectors by Hirose HRS, Lemo, Fischer. & Amphenol

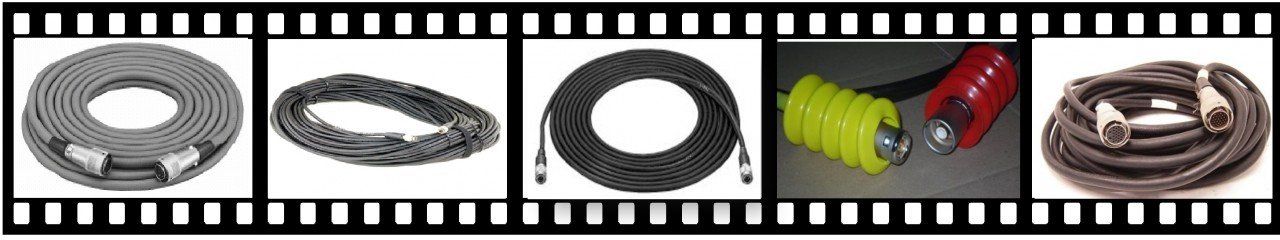

Professional Camera Cables

8,10,12,14,16,20,26, & 41 Pin cables for Sony, Hitachi, JVC, Ikegami, Panasonic,
Arri, Aaton, Thompson and Canon Compatible Cables.

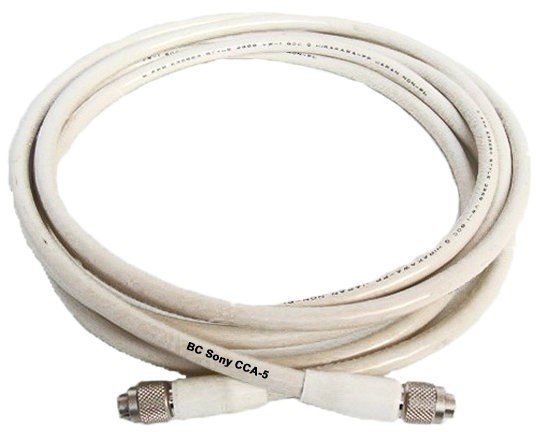

CCA-5







Sony Compatible 8Pin to 8Pin remote cables for 700 Remote Control Panels. Made with original

HRS / Hirose connectors. Connects RCP-750/920/1500 to HDCU-1000/1500/3300 direct to camera

This Cable Interfaces between BVP and HDC Cameras to MSU, RCP and CNU series Sony controllers. Note DOES NOT work with Sony’s RMB150 Controller, as does not monitor video out

CCA-5-3
CCA-5-5
CCA-5-10
CCA-5-15
CCA-5-20
CCA-5-25
CCA-5-30
CCA-5-50

Other lengths made to order, please contact us for pricing

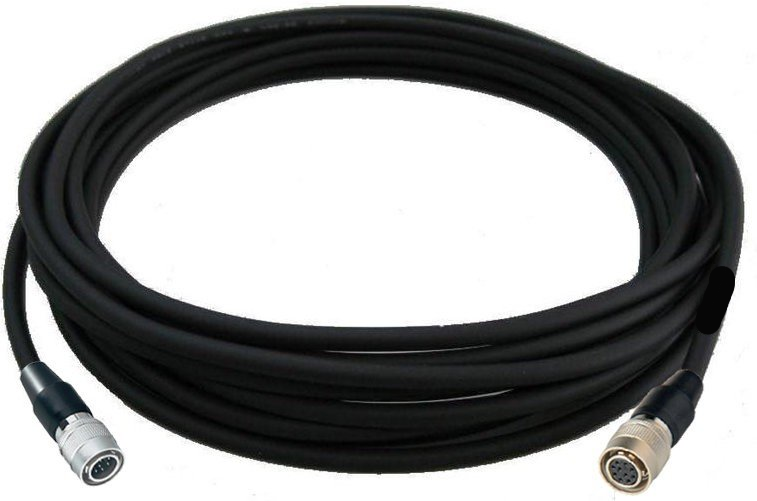

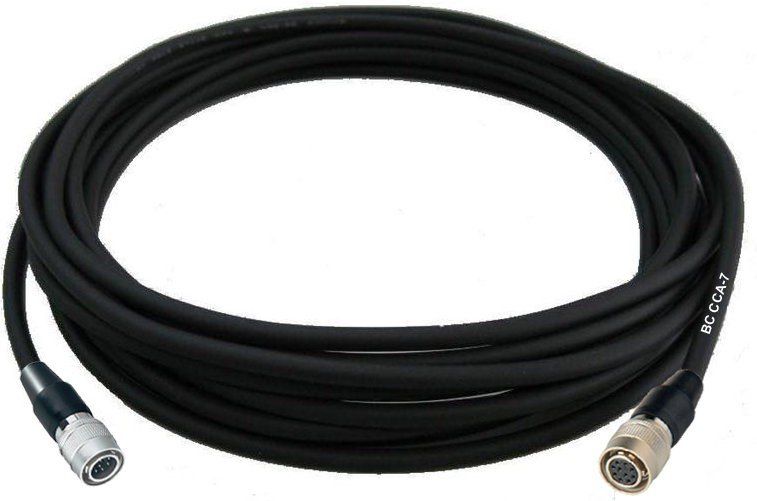

CCA-7

CCA-7






Sony Compatible 10Pin to 10Pin Cable for RCP-D50/D51 Remote Panels.

Black Cat uses original HRS/Hirose connectors.

CCA-7-3
CCA-7-5
CCA-7-10
CCA-7-15
CCA-7-20
CCA-7-25
CCA-7-30

Other lengths made to order, please contact us for pricing

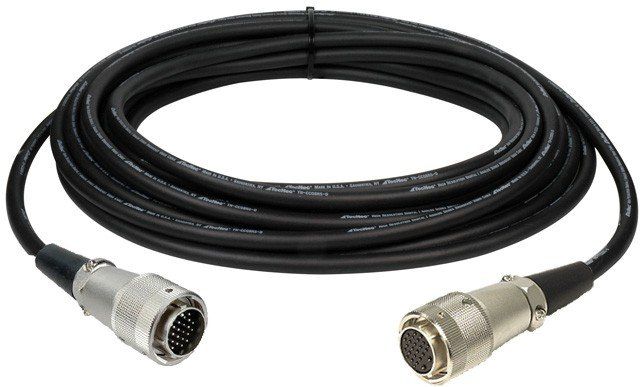

 CCZ-A

CCZ-A







Sony Analogue Compatible 26Pin to 26Pin M to F Camera to CCU Cable

CCZ-A-2
CCZ-A-5
CCZ-A-10
CCZ-A-25
CCZ-A-50
CCZ-A-75
CCZ-A-100

Other lengths made to order, please contact us for pricing



CCZ-AD

CCZ-AD






Sony Digital Compatible 26Pin to 26Pin M to F Camera to CCU Cable

 CCZ-AD-Z
 CCZ-AD-5
 CCZ-AD-10
 CCZ-AD-20
 CCZ-AD-50
 CCZ-AD-75
 CCZ-AD-100

    Other lengths made to order, please contact us for pricing

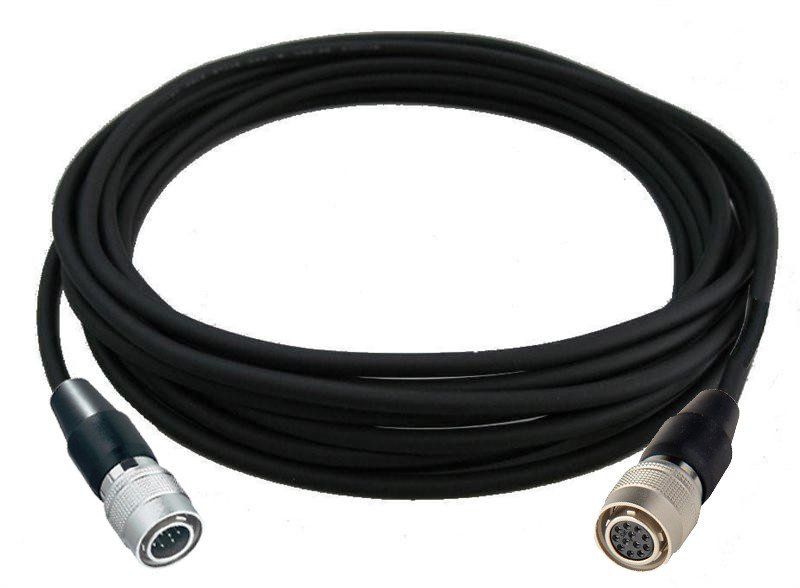

Sony CCXC Camera Cables







Sony Compatible 12Pin to 12Pin M to F CCXC-12 Style Cables.

  • For Sony XC and DXC Series Cameras

 CCXC-12P02N  2M
 CCXC-12P05N  5M
 CCXC-12P10N  10M

CCXC-12P25N  25M

Other lengths made to order, please contact us for pricing

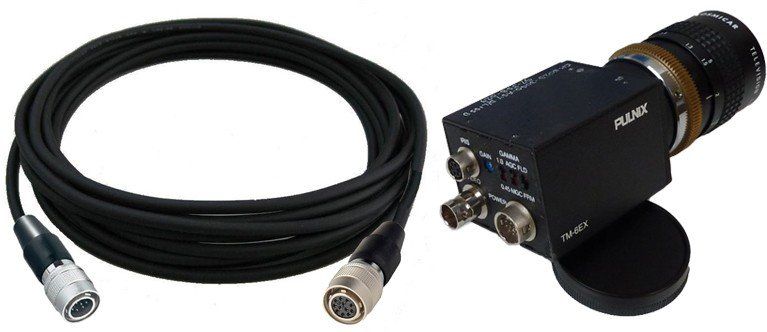

Pulnix TM & TMC CCXC Camera Cables







Pulnix Compatible 12Pin to 12Pin M to F CCXC 12P Style Cables

  • For Pulnix TM and TMC Series Cameras

 CCXC-12P02N  2M
 CCXC-12P05N  5M
 CCXC-12P10N  10M
 CCXC-12P25N  25M

Other lengths made to order, please contact us for pricing

Maybe Compatable with Panasonic GP and KX Cameras, Hitachi C201-KSN
And Intercon VCP-1.0-S, VCP-2.0-S, VCP-3.0-S, VCP-5.0-S, VCP-10-S Cables

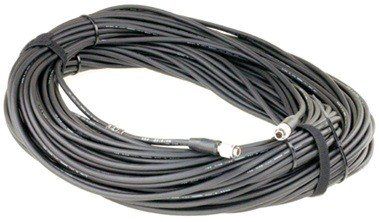

Sony RMB-150EXCABLE





Part: BC-  50 Meter
Part: BC-  30 Meter




The RMB150 Cable from Sony is a cable designed for use with the Sony RM-B150 remote control unit. It allows you to extend the distance between your equipment and the controller. It measures 98.4' in length.

The RMB150 is a 50 m (164') cable for connecting the RM-B150 remote control unit to a Sony compatible industrial video camera. A 30 m (98') cable is also available (RMB150/30US).

Hirose Coupler Boxs

8pin to 8pin Female - Female Coupler Box for used with CCA-5 & RMB150 Cables.
Available in Straight or Crossover

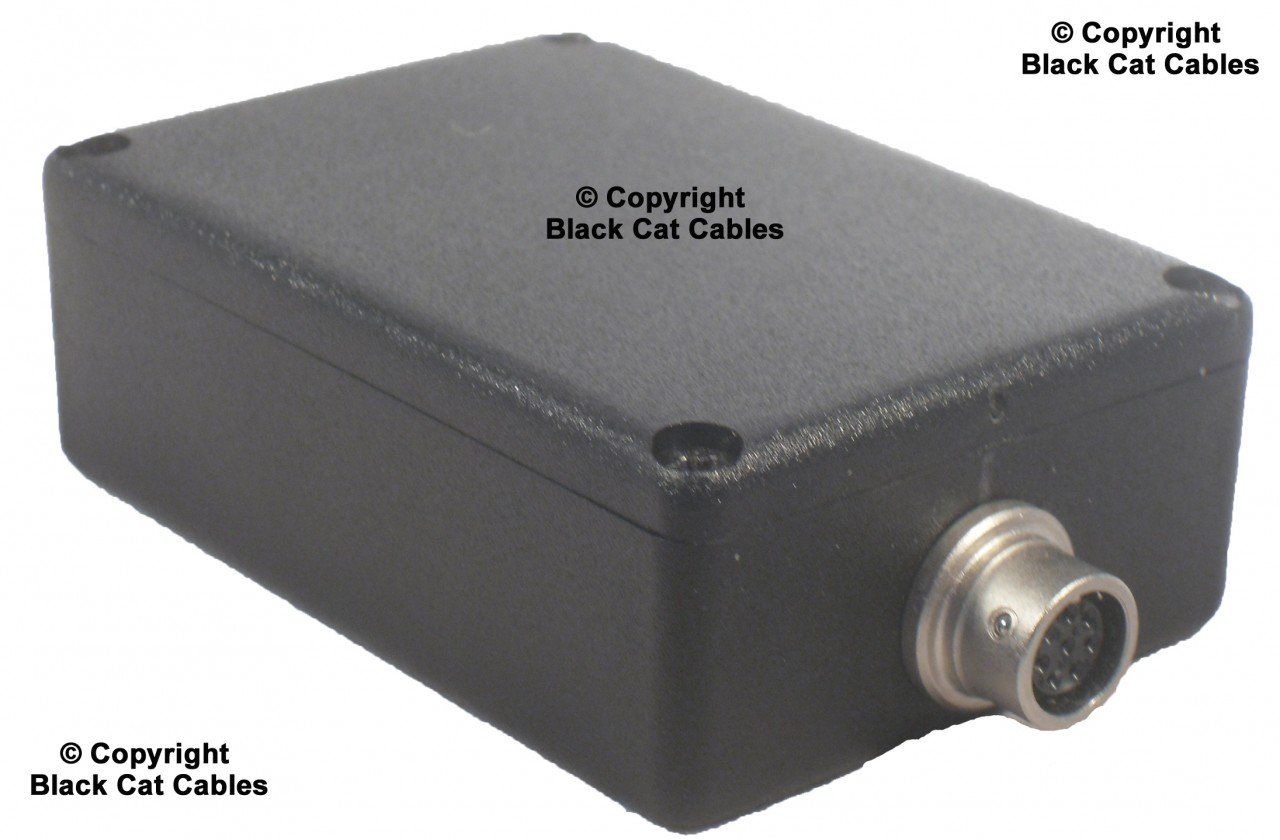

BC23-102      8pin Female to 8pin Female Coupler Box  (Straight)
BC23-174      8pin Female to 8pin Female Coupler Box  (Crossover)

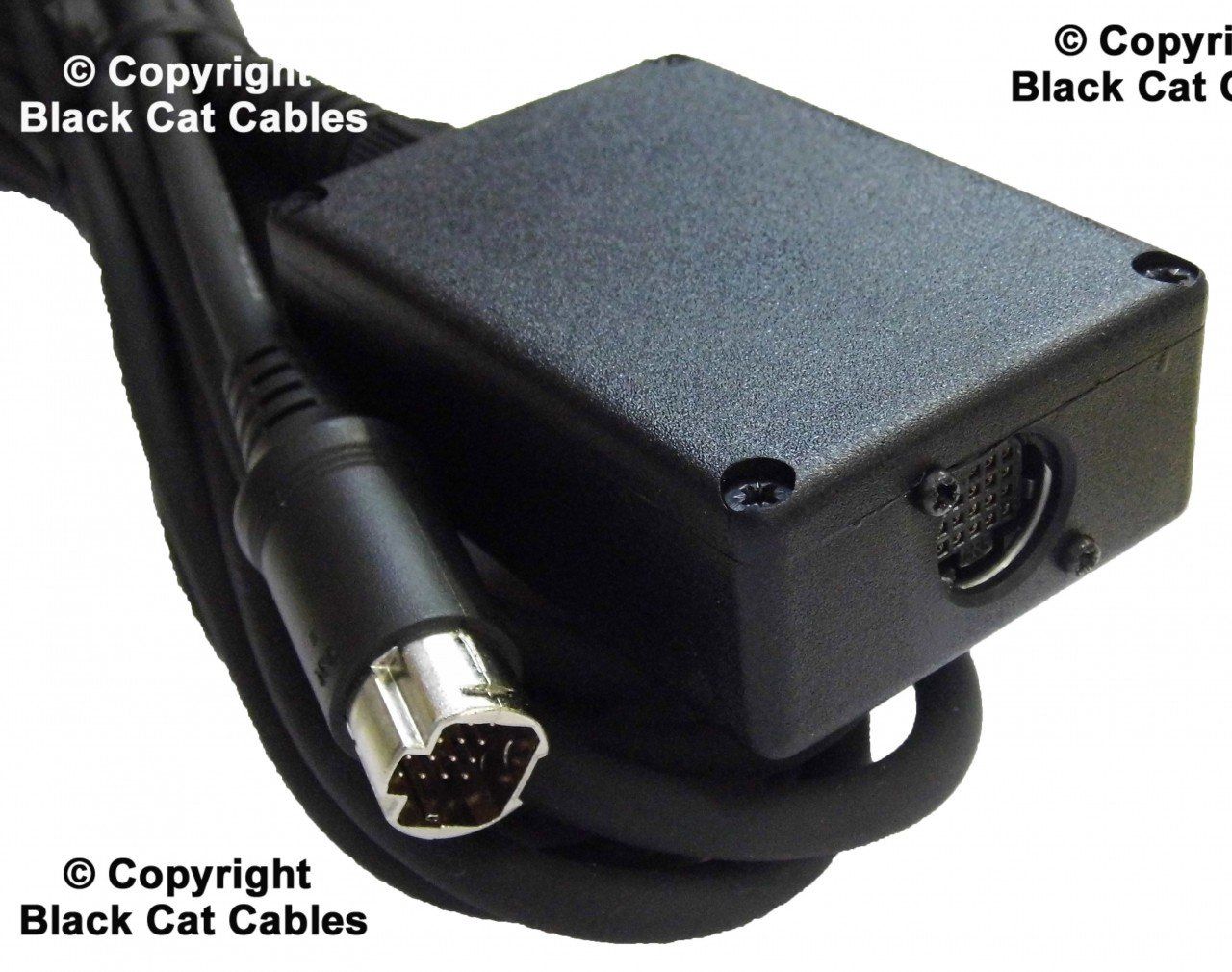

20pin Male - Female Viewfinder Extension Cable

• Max 5m long but any other shorter cables made.
• Moulded Straight 20 Pin Male end.
• All Pins fully wired 1:1 (So whatever signals goes IN, comes Out on the same)
• Compatible with 19 Pin Connectors
• Fully Shielded cable & shield taken to outer part of Male & Female connectors
• Strong ABS Box protects the Female end
• Flexible cable 6mm Black Polyurethane
• Wires on Pins 1 to 16 (AWG30) Pins 17-20 (AWG 28)

Part:  BC23-462






Part:  BC23-462-5M  (Max)
Part:  BC23-462-XX  (Custom Length)

Manufacturer

Original PN

Assembly Configuration

Original Length


     Ikegami

Cables


 Ikegami

MCC-10

26pin – 26pin

10M

 Ikegami

MCC-20

26pin – 26pin

20M

 Ikegami

MCC-30

26pin – 26pin

30M

 Ikegami

MCC-50

26pin – 26pin

50M

 Ikegami

MCC-100

26pin – 26pin

100M

 Ikegami

CJ-120

26pin Joint Adaptor for MCC

Adaptor

 Ikegami

RCC39-5

12pin - Taj 12pin

5M

Ikegami

    RCC39-10

             12pin - Taj 12pin

             10M

Ikegami

    RCC39-20

             12pin - Taj 12pin

             20M

Ikegami

    RCC39-30

             12pin - Taj 12pin

             30M

Ikegami

    RCC39-50

             12pin - Taj 12pin

50M


  JVC

 Cables


 JVC

VC-P110U

26pin – 26pin

5M

JVC

   VC-P114U

26pin – 26pin

100M

JVC

   VC-P112U

                  26pin – 26pin

20M

JVC

VC-P113U

26pin – 26pin

50M


Hitachi

 Cables


Hitachi

C-302-CR

41pin – 41pin

30M

Hitachi

C-502-CR

41pin – 41pin

50M

Hitachi

C-103-CR

41pin – 41pin

100M

Hitachi

C-302-KR

41pin – 41pin

30M

Hitachi

C-502-KR

41pin – 41pin

50M

Hitachi

C-130-KR

41pin – 41pin

100M

Hitachi

C-152-RCI

41pin – 41pin

15M

Hitachi

C-302-RCI

28pin – 28pin

30M

Hitachi

C-201-TD

28pin – 28pin

5M

Hitachi

C-501-TD

28pin – 28pin

3M

Hitachi

C-201-TE

4Pin – 4Pin

2M

Hitachi

C-501TE

4Pin – 4Pin

5M

Hitachi

C-201-VD

14Pin Male  – 28Pin Female

2M

Hitachi

C-501-VD

14Pin Male  – 28Pin Female

5M

Hitachi

C-201-VG

14Pin – 14Pin

2M

Hitachi

C-501-VG

14Pin – 14Pin

5M

Hitachi

C-201-VJ

26Pin Male  – 14Pin Female

2M

Hitachi

C-501-VJ

26Pin Male  – 14Pin Female

5M

Hitachi

C-201-VM

14Pin – 14Pin

2M

Hitachi

C-501-VM

14Pin – 14Pin

5M

Hitachi

C-201-VR

14Pin Male  – 28Pin Female

2M

Hitachi

C-501-VR

14Pin Male  – 28Pin Female

5M

Hitachi

C-201-VS

14Pin Male  – 28Pin Female

2M

Hitachi

C-501-VS

14Pin Male  – 28Pin Female

5M

Hitachi

C-201-VT

14Pin Male  – 28Pin Female

2M

Hitachi

C-501-VT

14Pin Male  – 28Pin Female

5M

Hitachi

C-201-VZ

14Pin Male  – 28Pin Female

2M

Hitachi

C-201-VW

26Pin – 26Pin

2M

Hitachi

C-501-VW

26Pin – 26Pin

5M

Hitachi

C-302-KAB

26Pin – 26Pin

5M

Hitachi

C-502-KAB

26Pin – 26Pin

30M

Hitachi

C-103-KAB

26Pin – 26Pin

100M


Sony

Cables


Sony

CCZ2-5

16Pin -16Pin

5M

Sony

CCA2-10

16Pin -16Pin

10M

Sony

CCA2-30

16Pin -16Pin

30M

Sony

CCA5-3

8Pin – 8Pin

3M

Sony

CCA2-10

8Pin – 8Pin

10M

Sony

CCA5-30

8Pin – 8Pin

30M

Sony

CCA7-25

10Pin – 10Pin

25M

Sony

CCA7-100

10Pin – 10Pin

100M

Sony

CCMC12P02

12Pin – 12Pin

2M

Sony

CCMC12P05

12Pin – 12Pin

5M

Sony

CCMC12P10

12Pin – 12Pin

10M

Sony

CCMC12P25

12Pin – 12Pin

25M

Sony

CCQ-10AM

14Pin – 14Pin

10M

Sony

CCQ-25AM

14Pin – 14Pin

25M

Sony

CCQ-50M

14Pin – 14Pin

50M

Sony

CCQ-100M

14Pin – 14Pin

100M

Sony

CCQ-2AR

14Pin – 14Pin

2M


Manufacturer

Manufacturer Part

Description


Sony Cables


  Sony

CCZAD

26 Pin Digital

Sony

CCZA

26 Pin Analogue

Sony

CCA7

10 Pin

Sony

CCA5

8 Pin

Sony

CCQAM

14 Pin to 14Pin

Sony

VDCC

12 Pin

Sony

CCA-5-3 (3M)

8 Pin

Sony

CCA-5-10 (10M)

8 Pin

Sony

CCA-5-30 (30M)

8 Pin

Sony

CCA-7-5 (5M)

10 Pin

Sony

CCA-7-25 (25M)

10 Pin

Sony

CCA-7-50 (50M)

10 Pin

Sony

CCA-7-100 (100M)

10 Pin

Sony

CCZ-A25 (25M)

26 Pin

Sony

CCZ-A50 (50M)

26 Pin

Sony

CCZ-A100 (50M)

                 26 Pin

Sony

CCDC-10 (10M)

12 Pin to 4 Pin

Sony

CCDC-100 (100M)

12 Pin to 4 Pin

Sony

CCDC-5 (5M)

12 Pin to 4 Pin

Sony

CCDC-50 (50M)

12 Pin to 4 Pin

Sony

CCDC-100A (100M)

12 Pin to 4 Pin

Sony

CCDC-50A (50M)

12 Pin to 4 Pin


Ikegami Cables


Ikegami

MMC

26 Pin

Ikegami

CP

8 Pin


Hitachi Cables


Hitachi

KAB

26 Pin

Hitachi

KR

28 Pin

Hitachi

CR

8 Pin


          JVC Cables


JVC

WVCA26U

26 Pin


 Canon Cables


Canon

TCC-005M

12 Pin to 12Pin

Canon

TCC-010M

12 Pin to 12Pin

Canon

TCC-020M

12 Pin to 12Pin

Canon

TCC-050M

12 Pin to 12Pin

Canon

TCC-100M

12 Pin to 12Pin

Canon

FPD-400D EXT

20 Pin to 20 Pin

Canon

ZSD-300D EXT

20 Pin to 20 Pin


                       Custom Lengths Available on all of the above camera cables.

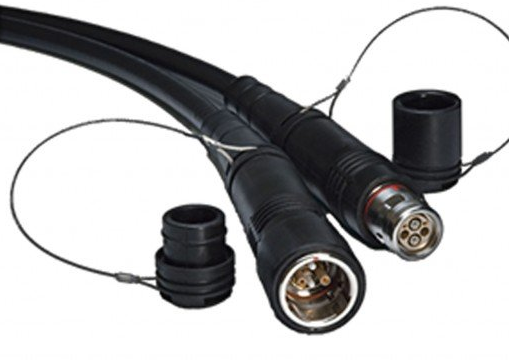

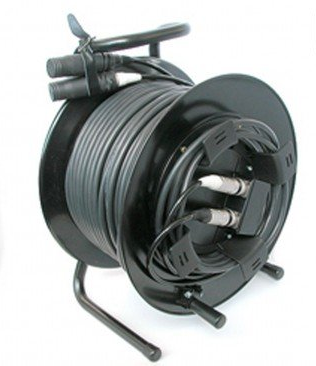

Fibre Optic Camera Cable Assemblies For HD Cameras

Black Cat Manufactures and supplies a full range of hybrid optical fibre camera cables

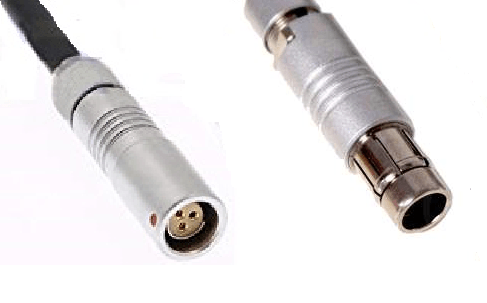

to the SMPTE 311M Specification incorporating LEMO 304M, FISCHER 1053 and NEUTRIK OpticalCon Connectors

Manufacturer

Manufacturer Part

Description


         Sony Cables


     Sony

CCF-100 (100M)

Hybrid Fibre Cable

                 Sony

CCF-200 (200M)

       Hybrid Fibre Cable

                 Sony

CCF-300 (300M)

      Hybrid Fibre Cable

                Sony

CCFC-M100 (100M)

      Hybrid Fibre Cable

                Sony

CCCF-M100HG (100M)

      Hybrid Fibre Cable


Cables for Lenses

Black Cat manufactures a range of compatible cables for Canon, Fujinon and Nikon Lenses

Camera Lens Compatible Cables.

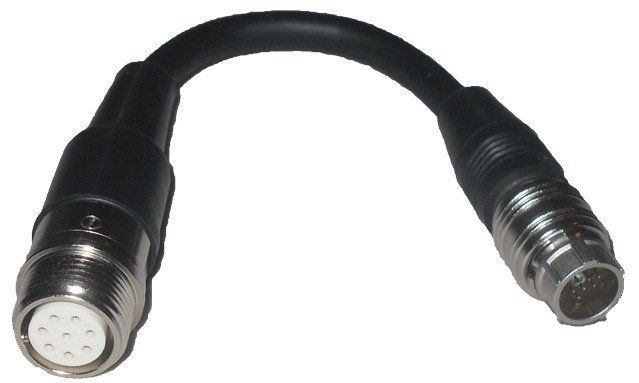

 6"  Part: BC23-329   Canon 20pin to Canon 8pin Cable






  • Colour: Black, Other Custom Lengths Available On Request
  •  Converts Canon digital lenses with 20pin connector to Canon analouge lenses
     with 8pin

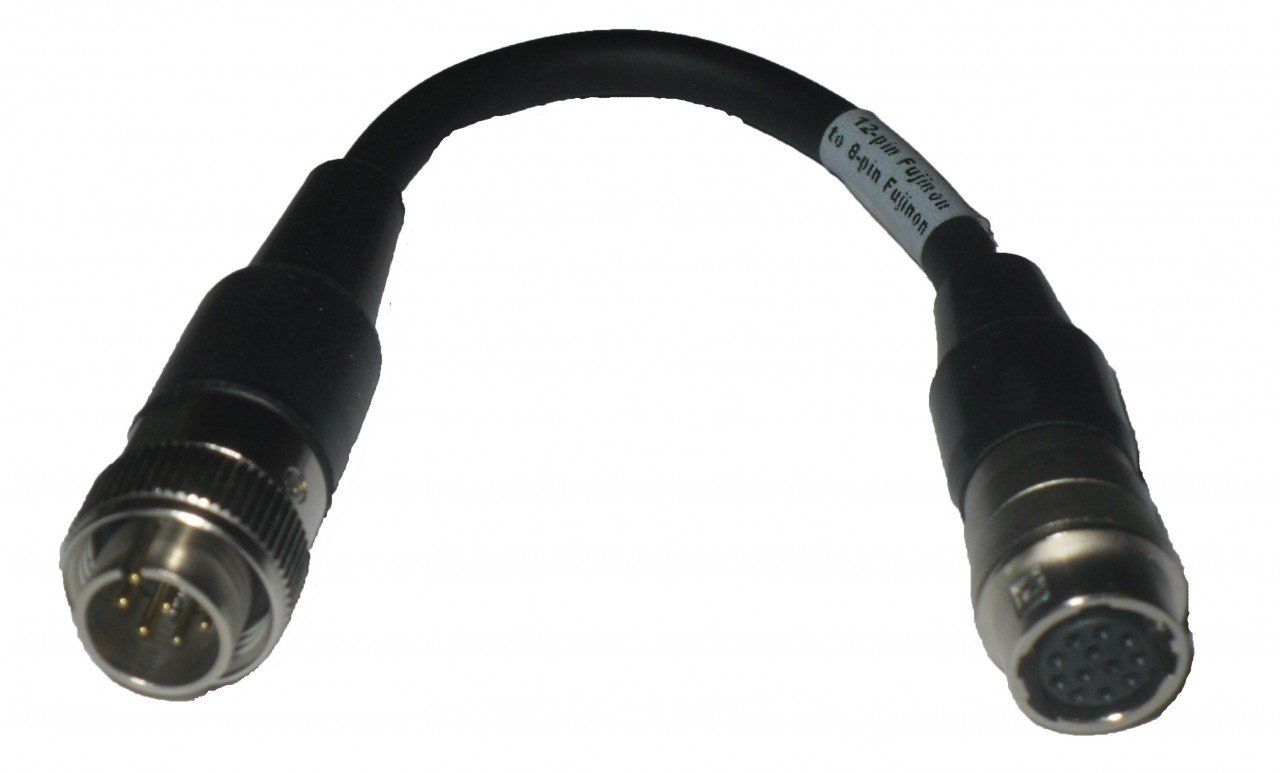

 6" Part: BC23-330  Fujinon 12pin to Fujinon 8pin Cable









  • Colour: Black, Other Custom Lengths Available On Request
  •  Converts Fujinon 12pin Controller to be used with Fujinon 8pin

6"  Part: BC23-331  Fujinon 8pin to Fujinon 8pin Cable









  • Colour: Black, Other Custom Lengths Available On Request
  •  Converts Fujinon 8pin Controller to be used with Fujinon 8pin Lens

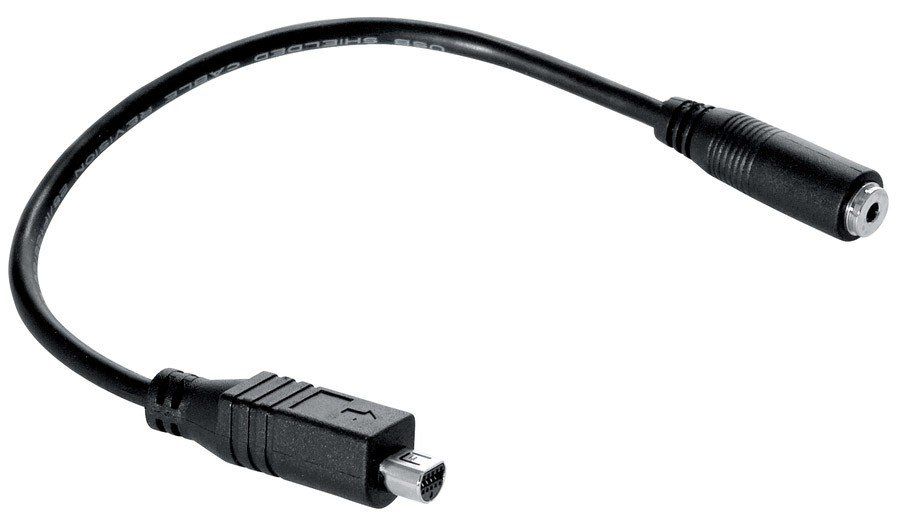

 6"  Part: BC23-355   Mini Audio and Video to LANC Converter Cable






  • Colour: Black, Other Custom Lengths Available On Request
  •  Converts Mini Audio and Video to LANC
  •  For Sony Handcams

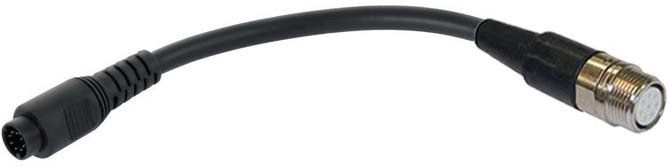

6"  Part: BC23-356   Canon Pro to Sony EX & PMW Converter Cable




  • Colour: Black, Other Custom Lengths Available On Request
  •  Converts Canon 8pin to Sony EX 8pin
  • Compatable for Sony EX-1, EX-3, PMW-200

 6"  Part: BC23-357  Fujinon to Sony EX & PMW Converter Cable





  • Colour: Black, Other Custom Lengths Available On Request
  •  Converts Fujinon 8pin to Sony EX 8pin
  • Compatable for Sony EX 8pin Lenses

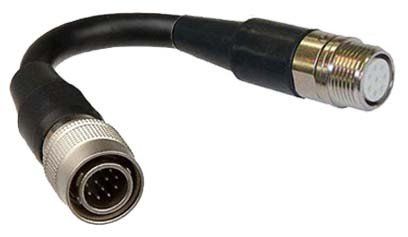

6"  Part: BC23-358   Canon 8pin to Fujinon 12pin Cable











  • Colour: Black, Other Custom Lengths Available On Request
  •  Converts Canon 8pin controller to be used with Fujinon 12pin Lens

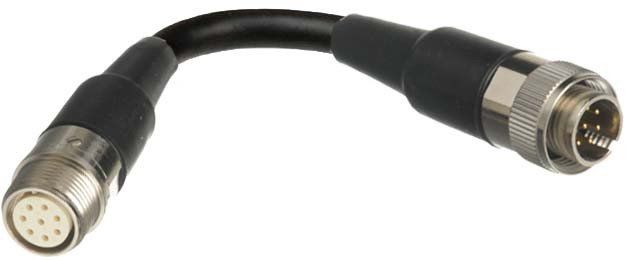

 6"  Part: BC23-359   Canon 8pin to Fujinon 8pin Cable









  • Colour: Black, Other Custom Lengths Available On Request
  •  Converts Canon 8pin Controller to be used with a Fujinon 8pin Lens

6"  Part: BC23-360  Fujinon 12pin to Canon 8pin Cable







  • Colour: Black, Other Custom Lengths Available On Request
  • Converts Fujinon 12pin to Canon 8pin
  • For Canon 8pin Lenses

6"  Part: BC23-361   Fujinon 8pin to Canon 8pin Cable







  • Colour: Black, Other Custom Lengths Available On Request
  • Converts Fujinon 8pin to Canon 8pin
  • For Canon 8pin Lenses

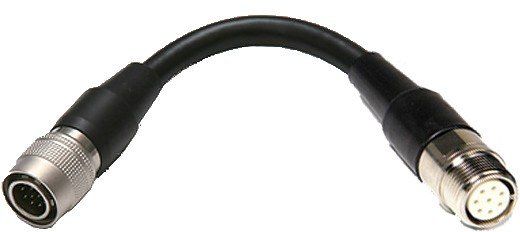

6" Part: BC23-331  Fujinon 8pin to Fujinon 12pin Cable






  • Colour: Black, Other Custom Lengths Available On Request
  • Converts Fujinon 8pin to Fujinon 12pin
  • For Fujinon 12pin Lenses

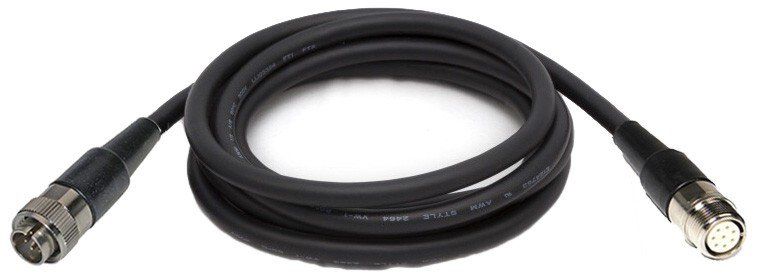

BC23-362-10  Fujinon / Canon 8pin Extention Cable (10M)
BC23-362-20  Fujinon / Canon 8pin Extention Cable (20M)
BC23-362-50  Fujinon / Canon 8pin Extention Cable (30M)







  • Colour: Black, Other Custom Lengths Available On Request
  • For Fujinon / Canon

Male to Female Extension Cables

BC23-258-10   Panasonic 10pin Extension Cables 10M

BC23-258-50   Panasonic 10pin Extension Cables 50M












10pin Extension Cable for Panasonic 300/50 Studio cable, Equivalent to Panasonic AJ-C10050G, RCP Cable for AG-EC4G Control Unit

  • Colour Black, Other Custom Lengths Available On Request.

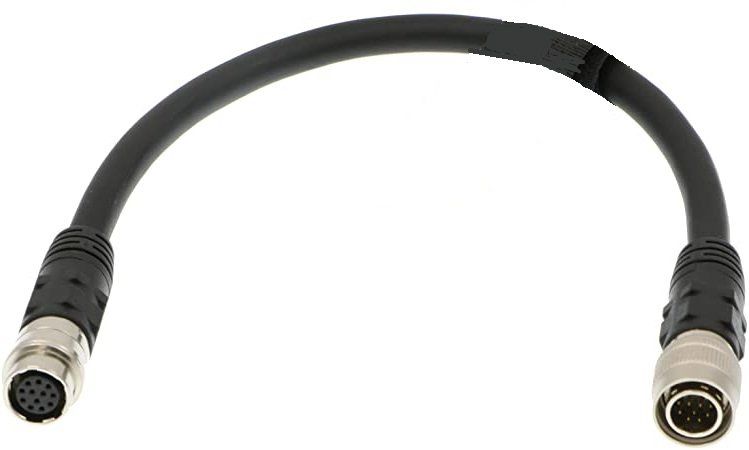

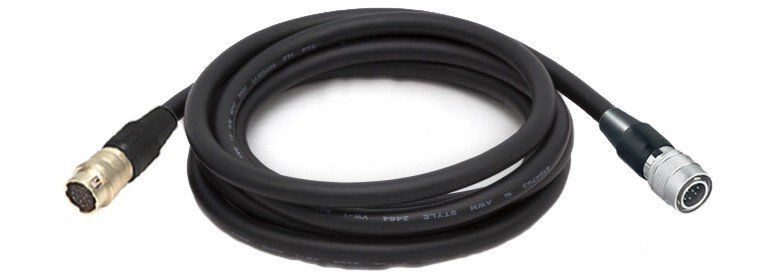

Fujinon 12pin Extension Cables







12pin Extension Cable for Fujinon lens zoom control

(Compatable with Fujinon Zoom rate Demand unit ERD-T21/ T22 and

Focus Position Demand unit EPD-1CA)

BC23-303-10  10M
BC23-303-20  20M
BC23-303-30  30M
BC23-303-50  50M

  • Colour Black, Other Custom Lengths Available On Request.

Lanc Cables.

Logic Application Control Bus System or Local Application Control Bus System






BC23-439-0.5   Moulded Male to Female Lanc Extension Cable  0.5M
BC23-439-1      Moulded Male to Female Lanc Extension Cable  1M
BC23-439-2      Moulded Male to Female Lanc Extension Cable  2M
BC23-439-3      Moulded Male to Female Lanc Extension Cable  3M
BC23-439-5      Moulded Male to Female Lanc Extension Cable  5M






BC23-438-1   Moulded Male to Male Lanc Cable  1M
BC23-438-2   Moulded Male to Male Lanc Cable  2M
BC23-438-3   Moulded Male to Male Lanc Cable  3M
BC23-438-5   Moulded Male to Male Lanc Cable  5M

JimmyJib Compatable Cables.







Black Cat supply Jimmy Jib Compatable Cables using the same original OEM connectors and make of cables as
original cables use.

Made to the same lengths and spec supplied as well as custom lenghts and custom spec i.e without yellow triax. Black Cat also offers a repair service using original connectors and cable.

Please call sales for advise and quotations.

Part: BC23-179     Triax Female to Fischer
Part: BC23-180     Triax Male to Fischer
Part: BC23-387   M#4 Control Box Cable (37pin to 24skt / BNT / 4pin AUX / BNC)
Part: BC23-388   Head Cable (37skt to 3.5mm Jacks / 8pin / BNT/ 4pin AUX / BNC)
Part: BC23-389-4     Extension Cable (37pin to 37skt) 4M
Part: BC23-389-6     Extension Cable (37pin to 37skt) 6M
Part: BC23-389-15   Extension Cable (37pin to 37skt) 15M
Part: BC23-402        Y Control Cable   (16skt to 2x 16skt)

TimeCode Cables.

Black Cat manufactures a full range of compatible TimeCode cables for interconnection for standard TimeCode equipment. As a UK manufacturer custom made cables to customer’s pinout can be made as required. Compatible cables for Ambient, Sound-Devices mixers and 7-series portable recorders, Sennheiser and others in stock.

DC Cables.

Anton Bauer / Power Tap / D-Tap / P-Tap Cables


Black Cat manufactures a range of compatible cables for Anton Bauer Power Tap.P-Tap / D-Tap / Power-Con Kit made with Power-Tap connectors pin and housing these are popular in the broadcast industry for cameras and lighting.





Black Cat also manufactures a range of custom cable assemblies with this connector, please contact us for a competative quote



4 Pin Hirose Male to 4 Pin Hirose Female Cable

4 Pin Hirose Male to 4 Pin Hirose Female Cable









  • Colour: Black, Other Custom Lengths Available On Request
  •  For NanoFlash Only

       15CM   Part: BC-
       30CM   Part: BC-

4pin Hirose Right Angle DC Cables

Part: BC23-279   Right Angle Hirose 4pin to Straight 4pin Cable

  • Colour: Black, Other Custom Lengths Available On Request
  • For Sound Devices 664 & Others Requiring 2 pin power







Part: BC23-278  Right Angle Hirose 4pin to Right Angle 4pin Cable

  • Colour: Black, Other Custom Lengths Available On Request
  • For Sound Devices 664 & Others Requiring 2 pin power








4 Pin XLR Male to 4 Pin Hirose Female Cable

4 Pin XLR Male to 4 Pin Hirose Female Cable










  •  Colour: Black, Other Custom Lengths Available On Request
  •  For NanoFlash Only

       15CM   Part: BC23-TBA-0.15
       30
CM   Part: BC23-TBA-0.30


D-Tap (Power-Con, Anton Bauer, P-Tap) to 4 Pin Hirose Female Cable

D-Tap (Power-Con, Anton Bauer, P-Tap) to 4 Pin Hirose Female Cable









  • Colour: Black, Other Custom Lengths Available On Request
  •  For NanoFlash Only

        15CM   Part: BC23-198-0.15
        30CM   Part: BC23-198-0.30

Teradek Compatible Cables.







D-Tap Plug to DC Plug 5.5x2.1mm Cable









  • Colour: Black, Other Custom Lengths Available On Request
  •  For Teradek

       30CM   Part: BC23-531-0.30
       15CM   Part: BC23-531-0.15

Right Angle DC Plug 5.5x2.1mm to 2 Pin Lemo Cable

Right Angle DC Plug 5.5x2.1mm to 2 Pin Lemo Cable









  • Colour: Black, Other Custom Lengths Available On Request
  •  For Teradek Bolt, For Swit to Battery

       30CM   Part: BC23-203-0.30
       15CM   Part: BC23-203-0.15

D-Tap Plug to 2 Pin Lemo Cable

D-Tap Plug to 2 Pin Lemo Cable










  • Colour: Black, Other Custom Lengths Available On Request
  •  For Teradek Bond

          10CM Part: BC23-202-0.10

XLR 4 Pin Male to 2 Pin Lemo Cable









  • Colour: Black, Other Custom Lengths Available On Request
  •  For Teradek 55, Bond, Bolt & Cube Power Cable

           1M      Part: BC23-277
           15CM  Part: BC23-202-0.15


2 Pin Lemo to Fly Lead Cable










  • Colour: Black, Other Custom Lengths Available On Request
  •  For Teradek

      1M Part: BC23-TBA


2 Pin Lemo to 2 Pin Lemo Cable











  • Colour: Black, Other Custom Lengths Available On Request
  •  For Teradek

       1M Part: BC23-TBA

Other Lemo Cables

Lemo FGG.1B Black Connectors  7 Pin Lemo to 7 Pin Motor Cable











  • Compatible with any Digital Lens
  • Colour: Black,  Other Custom Lengths Available On Request

 60cm Part: BC23-555

Moulded Lemo Cables

Black Cat can do the following Lemo Connectors Moulded on to Cable Now.

Lemo Connectors we can Moulded on to Cables

B series:
FGG- 0B /1B/2B ( both for one key and two keys)
FHG-0B
FEG-0B/1B
FNG-0B/1B
PHG-0B/1B/2B

D-Tap (Male) Plug to Lemo (4pin) Male Plug










  • FGG.0B.304.CLAD (4pin),  With pvc over-moulding
  • Cable: 2 Core, OD: 4.5MM  20AWG
  • Colour: Black, Custom Lengths Made to Order

       65cm      Part: BC23-464


4pin Neutrik XLR DC Power Cables








  • Colour: Black, Other Custom Lengths Available On Request
  •  Equiv to VDC Power Cable   Part: 110-580-969

    0.5M     Part: BC23-410-0.5
    1
    M        Part: BC23-410-1
    2M        Part: BC23-410-2
    3M        Part: BC23-410-3
    5M        Part: BC23-410-5
    10M     Part: BC23-410-10

Convergent Design NanoFlash Compatible Cables.

Convergent Design NanoFlash









NanoFlash Remote Tally Operating Cable








  • Colour: Black, Other Custom Lengths Available On Request
  •  For NanoFlash Only



       2M   Part: BC-

Arri Alexa Mini & Amria Compatable Cables.







XLR 4pin Male to Lemo 8pin Female Cable









  • Colour: Black, Other Custom Lengths Available On Request
  •  For Arri Alexa Mini & Amria

    1
    M      Part: BC23-385


XLR 4pin Male to Lemo Right Angle 8pin Female Cable











  • Colour: Black, Other Custom Lengths Available On Request
  •  For Arri Alexa Mini & Amria

    1
    M      Part: BC23-386

D-Tap to 20Pin Hirose Cable


Part: BC23-479

Also Known as

Arri K2.0001627
Fujinon SA-206K-1R2P-US



  • Colour: Black,   Other Custom Lengths Available On Request
  •  For Arri

BlackMagic Compatible Cables







DB25 Male to 8x XLR Analogue Audio Terandex 2D Cable

DB25 Male to 8x Analogue Audio Terandex 2D Cable









  • Colour: Blue, Other Custom Lengths Available On Request
  •  For Yamaha, Mackie, Sony & Apogee

       Part: BC23-268

Sound Devices Compatible Cables.





D-Tap to 4 Pin Hirose Male Cable









  • Colour: Black, Other Custom Lengths Available On Request
  •  For Sound Devices,The BC23-199 provides a power connection for Sound Devices
     products via a Hirose 4-pin connector to a D-Tap C
    onnector.

     Part: BC23-199

SmallHD Compatible Cables





4 Pin XLR Male to 4 Pin Hirose Female Cable









  •  Colour: Black, Other Custom Lengths Available On Request
  •  For SmallHD

       48" / 1.25M  Part: BC23-349  (CBL-PWR-4XLR-HIRO-48)

Hirose 4 Pin Female to Flying Lead Cable









  • Colour: Black, Other Custom Lengths Available On Request
  •  For SmallHD

       48" / 1.25M  Part: BC23-TBA (CBL-PWR-BARE-HIRO-48)

Transvideo Compatible Cables



4 Pin XLR Male to 2 Pin Lemo Cable



  30CM  Part: BC23-


  • Colour: Black, Other Custom Lengths Available On Request
  •  For Transvideo

D-Tap to 2 Pin Lemo Cable




 30CM  Part: BC23-243


  • Colour: Black, Other Custom Lengths Available On Request
  •  For Transvideo

Fujinon Compatible Cables




 D-Tap to 20Pin Hirose Cable



Part: BC23-479

Also Known as

Fujinon SA-206K-1R2P-US &
Arri K2.0001627


  • Colour: Black,   Other Custom Lengths Available On Request
  •  For Fujinon

Sennheiser Compatible Cables.





Black Cat can offer XLR Male or Female



1/4" - 6.35mm Jack Cables in Mono & Stereo,



also make a Compatable Sennheiser CL-100



XLR Male to 3.5mm Locking Jack Plug Cable.









Atamos Mini BNC SDI Cables.

Mini BNC








Atomos Samurai SDI Cable Set

(1x 23cm Mini-BNC/BNC Adapter, 1x 70cm Mini-BNC/BNC Cable)
(AO-ATOMCAB002)

Black Cat DSUB Breakout Cables.




Black Cat's Tascam Convention Cables are sutable for Analouge and AES / EBU DB25 Connectors.

Using Blue MultiPair Stage Casble with eight mini screened audio cables in a flexible outer jacket versions terminated with XLR or 6.35 Jacks the DB25 pin Male connectors and a full metal cover to elimanate interference.

Broadcast Lighting DMX Cables

Black Cat offers a range of heavy duty flexible 5 and 3 pin DMX cables. Manufactured from high quailty OFC professional 110ohm DMX 1 and 2 pair cable, terminated in Neutrik standard 3 pin and 5 pin XLR connectors in Nickel and Black bodies.

DMX Lead One Pair 3 pin Male to Female

  • Colour: Black, Other Custom Lengths Available On Request


Part: BC23-318-1M
Part: BC23-318-2M
Part: BC23-318-3M
Part: BC23-318-5M
Part: BC23-318-10M
Part: BC23-318-15M
Part: BC23-318-20M



DMX Lead One Pair 5 pin Male to Female

  • Colour: Black, Other Custom Lengths Available On Request
BC23-332  DMX Lead One Pair 5 pin Male to Female


Part: BC23-332-1M
Part: BC23-332-2M
Part: BC23-332-3M
Part: BC23-332-5M
Part: BC23-332-10M
Part: BC23-332-15M
Part: BC23-332-20M

DMX Lead Two Pair 5 pin Male to Female

  • Colour: Black, Other Custom Lengths Available On Request


 Part: BC23-333-1
 Part: BC23-333-2
 Part: BC23-333-3
 Part: BC23-333-5
 Part: BC23-333-10
 Part: BC23-333-15
 Part: BC23-333-20


XLR to Euroblock Cables / XLR to Phoenix Contact Cable

Compatable adapter cables for Cisco TelePresence SX80, Shure and Polycom products also works with PA Amplifiers and spekers

  • Can be made to any Length

XLR 3pin Male









XLR 3pin Male to Euroblock      Part: BC23-317-0.20  20CM


XLR 3pin Female

  • Can be made to any Length









XLR 3pin Female to Euroblock      Part: BC23-313-0.20  20CM


Other Euroblock Cables

6.35mm (1/4") Stereo Jack Plug

  • Can be made to any Length








6.35mm (1/4") Stereo Jack Plug to Euroblock      Part: BC23-TBA-0.20  20CM


Sony Microphone Cables











EC0.5X3F5M  Equivalent Formaly (K1502)
3Pin XLR Female to 5Pin XLR Male Microphone cable 19.7inch for ECM Sony Shotgun mic's

Part: BC23-300












EC05X5F3M Equivalent Formaly (K1504)
5Pin XLR Female to 2 x 3Pin XLR Male 16inch for ECM Sony Shotgun mic's

EC046BX:  UWP 3-Pole locking mini plug - XLR (male) cable for URX-P2
EC15BX:    SMC/XLR Cable



PowerCon Input & Output Cables

Powercon Input to Output Cable, also known as (A-B) (Blue-Grey)










  • Neutrik Products are now Branded with unique hologram that guarantees genuine and authentic. These XLR & Powercon connectors now have this hologram.
  • Note: The PowerCon Connectors we use are being re-design in May 2015

Colour: Black, Other Custom Lengths Available On Request

Part: BC23-383-0.5    0.5M
Part: BC23-383-1          1M
Part: BC23-383-2          2M
Part: BC23-383-3          3M
Part: BC23-383-5          5M
Part: BC23-383-10      10M

UK Plug (13A)  to PowerCon Power Cable













BS1363/A 13Amp moulded mains plug
Neutrik NAC3FCA 20Amp PowerCON connector
H05VV-F 3G 1.5mm² VDE cable

  • UK mains plug to PowerCON lead for powering modern professional lighting and amplifier units fitted with PowerCON connectors.
  • Neutrik Products are now Branded with unique hologram that guarantees genuine and authentic. These XLR & Powercon connectors now have this hologram.
  • Note: The PowerCon Connectors we use are being re-design in May 2015

Colour: Black, Other Custom Lengths Available On Request

Part: BC23-DP34581   1.5M
Part: BC23-DP34582    3M
Part: BC23-DP34583    5M

Powercon A to 16A CEEFORM Power Cable







  • Neutrik Products are now Branded with unique hologram that guarantees genuine and authentic. These XLR & Powercon connectors now have this hologram.
  • Note: The PowerCon Connectors we use are being re-design in May 2015

Colour: Black, Other Custom Lengths Available On Request

Part: BC23-384-0.5    0.5M
Part: BC23-384-1          1M
Part: BC23-384-2          2M
Part: BC23-384-3          3M
Part: BC23-384-5          5M
Part: BC23-384-10      10M

Ambicore Loom Powercon A-B to XLR M-F Cable







  • Colour: Black, Other Custom Lengths Available On Request
  • Neutrik Products are now Branded with unique hologram that guarantees genuine and authentic. These XLR & Powercon connectors now have this hologram.
  • Note: The PowerCon Connectors we use are being re-design in May 2015

Part: BC23-352-1      1M
Part: BC23-352-5      5M
Part: BC23-352-10   10M

Ambicore Loom 16A to Powercon, XLR Cable







  • Colour: Black, Other Custom Lengths Available On Request
  • Neutrik Products are now Branded with unique hologram that guarantees genuine and authentic. These XLR & Powercon connectors now have this hologram.
  • Note: The PowerCon Connectors we use are being re-design in May 2015.

Part: BC23-351-1      1M
Part: BC23-351-5      5M
Part: BC23-351-10   10M

HD SDI Coax Cables


                 HDTV Precision Video and HD-SDI CABLES for installation and patch




HD-SDI Cable on Rubber Cable Drum


Made on Belden 1694F
with Black Neutrik Rear Twist BNC

All Tested before shipping

 Part: BC23-370-30
 Part: BC23-370-40
Part: BC23-370-50
 Part: BC23-370-60
                                                                    Part: BC23-370-70
                                                               Part: BC23-370-80
                                                               Part: BC23-370-90

Part: BC23-370-100

                            Belden 1855A and HD-SDI up to 4.5 GHZ

                       Belden 1505A and flexable1505F HD-SDI up to 4.5 GHZ

                      Belden 1694A and flexable1694F HD-SDI up to 4.5 GHZ


 BNC Plug for Belden and other HD/SDI Coax Cables









HDTV True 75 Ohm HD quality crimp / solder for most common coax cables
in 3 Ghz & 6 Ghz versions



1.0/2.3 HD Connetor Cables









Black Cat can manufacture cables to any length with the 1.0/2.3 Push Pull miniature

75 Ohm coax connector designed for use with Image 360 & Belden 1855A digital video cable . These connectors are used for the installation of Miranda / N-Vision and other ranges of SD / HD & AES Routers and  Enterprise Class & Truck routers.

Triaxial  Cable Assemblies. (Meets BBC PSF 1/9 Specifications)


Lemo Triax Cables

Black Cat make and supply Triaxial Cable Assemblies with 8.5mm,11.2mm and 14.0mm cable made with Flexible or Solid conductors with Black or Red PVC/PUR/LS0H jackets.

Made with Lemo (BBC Specification) connectors or Fischer (Sony Specification) connectors. All have relevant colour Red/Yellow gaiters and sleeves fitted. Suitable for Outside Broadcast use.

BC23-106-50      Lemo Plug to Socket on 8.5mm cable at 50M
BC23-106-100    Lemo Plug to Socket on 8.5mm cable at 100M
BC23-106-150    Lemo Plug to Socket on 8.5mm cable at 150M
BC23-106-200    Lemo Plug to Socket on 8.5mm cable at 200M

BC23-107-50      Lemo Plug to Socket on 11.2mm cable at 50M
BC23-107-100    Lemo Plug to Socket on 11.2mm cable at 100M
BC23-107-150    Lemo Plug to Socket on 11.2mm cable at 150M
BC23-107-200    Lemo Plug to Socket on 11.2mm cable at 200M

BC23-123-50      Lemo Plug to Socket on 14mm cable at 50M
BC23-123-100    Lemo Plug to Socket on 14mm cable at 100M
BC23-123-150    Lemo Plug to Socket on 14mm cable at 150M
BC23-123-200    Lemo Plug to Socket on 14mm cable at 200M

Black Cat also offer a repair, fully test, clean and re-wind / coil customers own cable assemblies. Please contact the sales

Neutrik EtherCon Connector Cables






Black Cat Manafatures the full range of EtherCON RJ45 CAT5e & Cat6 & CAT6A connector range. The range has been designed to protect the fragile latch and cover of 'standard' RJ45 plugs and is particularly suitable for harsh and demanding environments such as outside broadcast, stage production, point of sale etc. Three types of panel connector are available to fit the A series or the universal D series cut outs; two have Krone IDC blocks on the rear for cable termination and one

(D Series only) is a back to back connector.

Neutrik CAT6 Ethercon To RJ45 with Snagless Boot

  • Colour: Black, Other Custom Lengths Available On Request











Part: BC23-321-1  1M
Part: BC23-321-2  2M
Part: BC23-321-3  3M


Neutrik CAT5E Ethercon To Neutrik Ethercon

  • Colour: Black, Other Custom Lengths Available On Request











Part: BC23-155-1  1M
Part: BC23-155-2  2M
Part: BC23-155-3  3M


Power Cables for TV & Broadcast & Stage Lighting

16A 309 IP44 2P+E 240V Plug to Socket Cable (Black For Broadcast & Stage)

  • Black IP44 Connectors are used in Broadcast & Stage Environments
  • 16Amp / 240V,  Colour: Black ,  Made on 2.5mm H07RN-F Rubber Cable
  • Custom Lengths Available On Request













   5M    Part: BC25-109-5
 10M    Part: BC25-109-10
 15M    Part: BC25-109-15


         All Fluke PAT Tested Before Shipping,   PAT Test Records Available.

General Broadcast Cables

Black Cat can offer the following Broadcast coax cables: PSF1/2, PSF1/3, PSF 1/6, PSF1/7, PSF1/9

MUSA & BNC Cables.

MUSA Female to Female Cables



 1M   Part: BC23-255-1
 2M   Part: BC23-255-2






Digital suitable for HDTV using Draka 360 Serial Digital Video cable or Analogue using PSF1/3 equivalent coloured cables


HDMI Cables.











HDMI quality moulded 19-pin to 19-pin, gold plated contacts suitable for Digital TV 0.5m upto 20m.Also HDMI fibre cables.



Mini RG59 Cables

Black or White   Mini RG59 meets SDI and HDTV specifications upto 3Ghz. Available in Single core in colours, 3,5,6,8,10,12 7 16 core.Fitted with a choice of crimp and compression connectors such as RCA/Phono and BNC Gold or Nickel range.

Field Deployable Cables. Triax, HD Coax, Cat5E, Cat6 or Fibre Optic range of connectors in any length can be installed onto metal Marcaddy winding drums.

3.5MM 4pole (Stereo) Broadcast Audio Cables

  • For (Slim Style) Apple IPhone, IPad, IPod
  • Slim Cable
  • Shielded & Inner conductor made of pure copper



3.5MM 4pole Plug - 3.5MM 4pole Plug (Black)

 Part:




3.5MM 4pole Plug - 3.5MM 4pole Jack (Black)

Part:






3.5MM 4pole Plug - 3.5MM 4pole Plug (White)

 Part:





3.5MM 4pole Plug - 3.5MM 4pole Jack (White)

Part:




XLR AES/EBU Digital Cables

Black Cat manafatures quality AES/EBU Digital Cables using Neutrik Connectors
Black Cat UPLC-OFC 6.00mm 110 Ohm Green Series Mic cable Coloured boots

 XLR Multicore Drums















  Ideal for use on stage or theatres
        Avalable in 15m and 25m
             Lead Length:  15m
Connector Type A: 8 x XLR Sockets
  Connector Type B: 8 x XLR Plugs
             Number of Poles:   3

XLR Cables













Ideal for use on stage or theatres
    avalable in 15m and 25m
        Lead Length:  15M
Connector Type A: XLR Male
Connector Type B: XLR Female



 XLR Splitter - Isolated






XLR ADAPTOR AND TRANSFORMER
Transformer Type: Mic Matchine
             External Depth: 25mm
      External Length / Height: 87mm
             External Width: 51mm


XLR Loom











8-way XLR Plug - Socket loom

           Colour: Black
Connector A: 8x 3 way xlr plugs
Connector B:  8x 3 way xlr sockets
Lengths: 1.8m, 3m, 6m, 10m, 15m

XLR Multicore Stage Box














Available with8, 12 or 20 sends and 4 returns

15, 30 or 45m lengths
High quality screened cable
Suitable for balanced audio transmission
Integral carry handle/frame Drum Mounted
or Stage Box options

 Other XLR Cables








XLR 3 Pin socket to 6.35mm Jack Adapter Cable

20cm Orange flexible PVC insulated lead
Cable Length - 0.75ft approx 230mm
Connector Type A: 3 Pin XLR Socket
Connector Type B: 6.35mm (1/4) Stereo Jack Plug
Colour: Orange
No. of Poles: 3

XLR 3 Pin plug to 6.35mm Jack Adapter Cable

20cm Orange flexible PVC insulated lead
Cable Length - 0.75ft approx 230mm
Connector Type A: 3 Pin XLR Plug
Connector Type B: 6.35mm (1/4) Stereo Jack Plug
Colour: Yellow
No. of Poles: 3

SVGA/VGA Cables.











HD15 fitted with male plugs or Female sockets using quality 3 Core Coax Plus 4 awg 28 wires   to any length with or without ferrite core.

HRS RP34 Compact Plastic Connector For AC Adapter













Black Cat can ovffer compact and lightweight
3 and 4-pin plastic connectors for the AC adapter interfaces of notebook PCs

Snap-locking mechanism for ease of insertion and extraction.

PCB-mounting receptacle with a mating side of 10 x 10mm (for 3 pins) or 10 x 11mm (for 4 pins) with a depth of 11.3mm
Sequential construction with one of the three or four pins designed for a grounding terminal that comes in contact before the other two or three pins.

A snap-fit assembling method for plug, thus eliminating the use of screws and ensuring ease of assembling

STAR-QUAD Multicore Cables 8 Channel and 12 Channel

Fitted with Mil 26 way M/F and Mil 41 M/F

Cable and Faceplate Assemblies.


















For use predominantly for whiteboards and projectors but suitable for large screen or PC based multimedia systems. These can be built to any length with any combination of cables and face plates. Just ask our sales engineers for details.

AV Wall Outlets.











White PVC or Metal for RCA/Phono, Scart, HD15 for SVG A, XLR, Speakon ,
S-video. DB9/15/25 and BNC.Custom made faceplates   also available on request.

General A/V Cables. HDMI upto 20m, DVI-D and DVI-I single and Dual-link cables, S-Video 4 Pin & 7 Pin cables, 3 to 6 way BNC looms, VGA/SVGA, Phono(RCA) cable assemblies. Scart cables. Range of Heavy Duty   power cables. XLR Cables, Microphone cables, A & B Gauge jack cables, Coily cables, 2.5 & 3.5 Jack cables.Bantam patchcords . 6.35mm (1/4") cables, OB26 cables to UK Broadcast pattern. Speakon loudspeaker cables. F-Type cables. TOSLINK Optical cables.

Toslink Cables

Toslink or Optical Cable is a standardized optical fiber connection system. Its most common use is in consumer audio equipment (via a "digital optical" socket), where it carries a digital audio stream between components such as MiniDisc and CD players and DAT recorders Toshiba originally created TOSLINK to connect their CD players to their receivers for PCM audio streams. It was soon adopted by manufacturers of most CD players. Early TOSLINK systems used the raw PCM data from the CD player; the S/PDIF standard has now become nearly universal for audio streams. It can often be found on DVD players and some game consoles to connect the digital audio stream to Dolby Digital/DTS decoders The name is a registered trademark of Toshiba, created from "TOShiba-LINK". Variations of the name, such as TOSlink, TosLink, and Tos-link, are also seen, while the official generic name for the standard is "EIAJ optical". Black Cat Cable can offer Toslink cable to any length made in our High Wycombe production facility. We can also supply Female/Female Adapters and TOSLink
to 3.5mm Adpaters. Black Cat can also supply the 3.5mm to 3.5mm jack type Toslinkink cables.



Cable Reels & Cable Drums

CD1, 2, 3 Broadcast Cable Drums

Black Cat do A range of heavy-duty stackable cage drums commonly used in the broadcast industry. The tubular steel frames are epoxy coated for protection and have a large cut out on the side flange to enable connectors to pass through. All versions have a winding handle.

CD1, 2, 3 Broadcast Cable Drums


Field Deployable Cables. Triax, HD Coax, Cat5E, Cat6 or Fibre Optic range of connectors in any length can be installed onto metal Marcaddy winding drums.

                        Steel Sk                                           Rm-Type


                    Skeleton 200M Drum                         Skeleton 400M Drum



           Please contact sales on 01494 711820 or sales@blackcatcables.com
