Telecom Cables


Black Cat Cables manufacture a wide range of Telecoms / Voice cables. Made with BT approved specification cables and connectors

Telco BT226 25 Pair Cables


As standard Black Cat offers 90 Degree covers on voice telco cables, however 180 and 120 degree covers are also offered. We offer Male to Male, Female to Female, Male to Female as well as open ended or sometimes known as blunt cut for punching down onto Krone type distribution frames. Telco cables are made with BT Spec CW1308 cable white in PVC, LSF or LSZH. All cables are 100% tested on our Cirris Touch 1 tester before dispatch.

90° RJ21 Voice Telco

90° RJ21 Voice Telco Male - Male

Custom Lengths Available On Request

  • 5M  Part: BC14-051-5
  • 10M   Part: BC14-051-10
  • 20M   Part: BC14-051-20

90° RJ21 Voice Telco Male - Female

 Custom Lengths Available On Request

  • 5M  Part: BC14-028-5
  • 10M   Part: BC14-028-10
  • 20M   Part: BC14-028-20





90° RJ21 Voice Telco Female - Female , Custom Lengths Available On Request

  • 5M  Part: BC14-029-5
  • 10M   Part: BC14-029-10
  • 20M   Part: BC14-029-20





90° RJ21 Voice Telco Male - Open End

Custom Lengths Available On Request

  • 5M  Part: BC14-052-5
  • 10M   Part: BC14-052-10
  • 20M   Part: BC14-052-20



90° RJ21 Voice Telco Female - Open End

Custom Lengths Available On Request

  • M  Part: BC14-053-5
  • 10M   Part: BC14-053-10
  • 20M   Part: BC14-053-20



All Are Also Available In 120° Amp Cover , Colour: Black

180° RJ21 Voice Telco

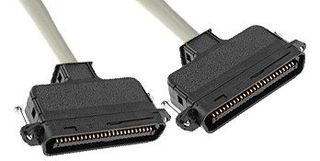

180° RJ21 Voice Telco Male - Male Custom Lengths Available On Request

  • 5M   Part: BC14-034-5
  • 10M  Part: BC14-034-10
  • 20M  Part: BC14-034-20

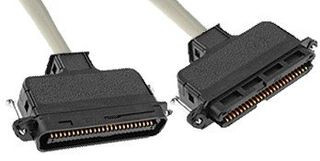

80° RJ21 Voice Telco Male - Female Custom Lengths Available On Request

  • 5M   Part: BC14-035-5
  • 10M  Part: BC14-035-10
  • 20M  Part: BC14-035-20

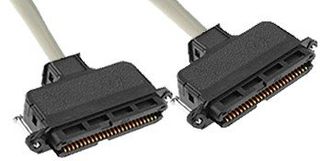

180° RJ21 Voice Telco Female - Female Custom Lengths Available On Request

  • 5M   Part: BC14-036-5
  • 10M  Part: BC14-036-10
  • 20M  Part: BC14-036-20

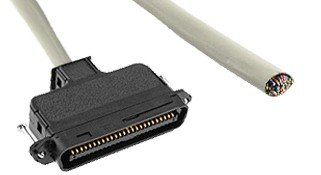

180° RJ21 Voice Telco Male - Open End

Custom Lengths Available On Request

  • 5M   Part: BC14-216-5
  • 10M  Part: BC14-216-10
  • 20M  Part: BC14-216-20



180° RJ21 Voice Telco Male - Open End

Custom Lengths Available On Request

  • 5M   Part: BC14-033-5
  • 10M  Part: BC14-033-10
  • 20M  Part: BC14-033-20



All Are Also Available In 120° Amp Cover , Colour: Black

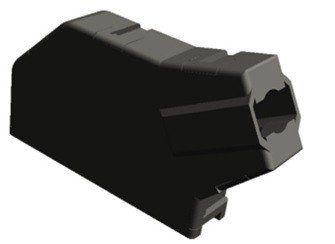

AMP Telco 120° Covers

Black Cat can offer the above 120° connector hood / cover in both Male & Female in any of the above cable configarations as specail manafature. Please contact our sales depatment for more information

Telecom Coax Cables


Black Cat offers BT2001, BT2002, BT2003, RG179 cables in single core, BT 3002 in single 8 and 16 Core. TZC single, 8 and 16 core, RA7000 and RA8000 in Single, 8 and 16 core.   A wide range of connectors can be fitted to these cables ranging from BNC Plugs, Type 43 Standard,HDC and UHDC,& VHCDC. SMB

Standard (White) Type 43 Coxial Connectors & BT Reference:

Socket BT2002         43/2FS

Socket BT2003         43/3FS

       Socket RG179             43/4FS

Socket BT3002         43/5FS

Socket RA7000         43/7FS

Socket RA8000         43/8FS



Plug BT2002             43/2GTIS

Plug BT2003             43/3GTIS

Plug BT179                 43/4GTIS

Plug BT3002             43/5GTIS

Plug RA7000             43/7GTIS

Plug RA8000            43/8GTIS



High Density (Blue) Type 43 HDC Coax Connectors & BT Reference:

HDC Socket BT2002         HDC43/2FS

HDC Socket BT2003         HDC43/3FS

HDC Socket RG179          HDC43/4FS

HDC Socket BT3002         HDC43/5FS

HDC Socket RA7000         HDC43/7FS

HDC Socket RA8000         HDC43/8FS



HDC Plug BT2002             HDC43/2GTIS





HDC Plug BT2003             HDC43/3GTIS

HDC Plug RG179              HDC43/4GTIS

HDC Plug BT3002             HDC43/5GTIS

HDC Plug RA7000            HDC43/7GTIS

HDC Plug RA8000            HDC43/8GTIS



Ultra High Density (Purple) Type 43 UHDC Coax Connectors & BT Reference:

UHDC Socket BT2002         UHDC43/2FS

UHDC Socket BT2003         UHDC43/3FS

UHDC Socket RG179          UHDC43/4FS

UHDC Socket BT3002         UHDC43/5FS

UHDC Socket   RA7000       UHDC43/7FS

UHDC Socket   RA8000       UHDC43/8FS





UHDC Plug BT2002            UHDC43/2GTIS

UHDC Plug BT2003            UHDC43/3GTIS

UHDC Plug RG179              UHDC43/4GTIS

UHDC Plug BT3002            UHDC43/5GTIS

UHDC Plug   RA7000           UHDC43/7GTIS

UHDC Plug   RA8000         UHDC43/8GTIS



Lucent/Avaya Siemon Style S110 Patch Cables

  • Black Cat manufactures S110 patch cords using fully compatible Siemon S110 Cat5e connectors, making them suitable for all standard 110 patching applications.



  • Please contact our sales staff with your specification, 1pair, 2pair, 3pair, 4pair S110 to S110 or S110 to RJ45 plug letting us know the colours and options to obtain a price for your requirements.



  • All leads are made to order by our professional dedicated staff and are tested to ensure thay conform with the Cat5E specifications.


Pre Terminated Krone panels

CW1308 2 Pair to 320 pair to 19 Inch 3U or 4U Recessed or Flat termination Strip Carrier





Voice Panels RJ45 Presentation

To open end cables or the Telco RJ21 any length.

Single Baluns & Balun Panels

  • Balun stands for Balanced to Unbalanced and converts 75 Ohm signals (standard coax) to 120 Ohm (twisted pair). Black Cat can offer single stand alone Baluns with BNC or Type 43 to RJ45 sockets as well as a range of 19" Balun panels from 4 way to 16 way.

  • Our standard stock Baluns are G.703 Type BNC

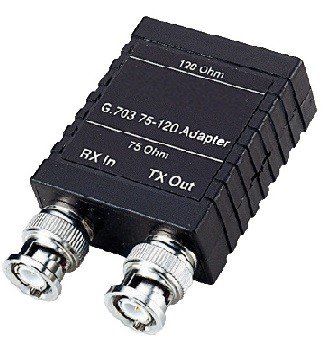

2 x BNC Male 75ohm to 1x RJ45 Female 120 Ohm

  • 2 x BNC Plugs (75 Ohm) to
  • 1 x RJ45 Female (120 Ohm)
  • Part: BC-BAL-G703-M

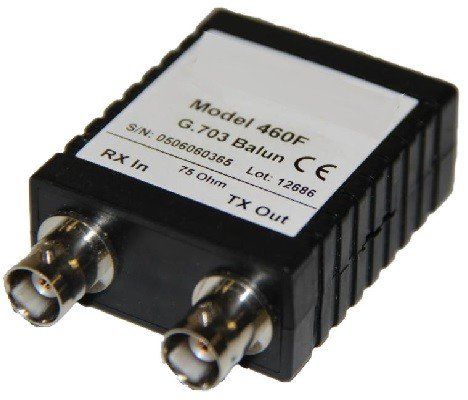

2 x BNC Female 75ohm to 1x RJ45 Female 120 Ohm

  • 2 x BNC Jacks (75 Ohm) to
  • 1 x RJ45 Female (120 Ohm)
  • Part: BC-BAL-G703

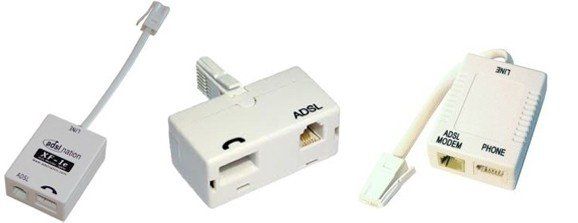

ADSL Cables, ADSL Microfilter/Splitter


We offer the XF-1E gold standard of Microfilters, this model ensures your ADSL service will run at maximum performance with interference free calls.We also offer two other filters one plug in adapter type and another  type with a short tail. Black Cat makes RJ11 / RJ12  straight and crossover cables to any length you require.

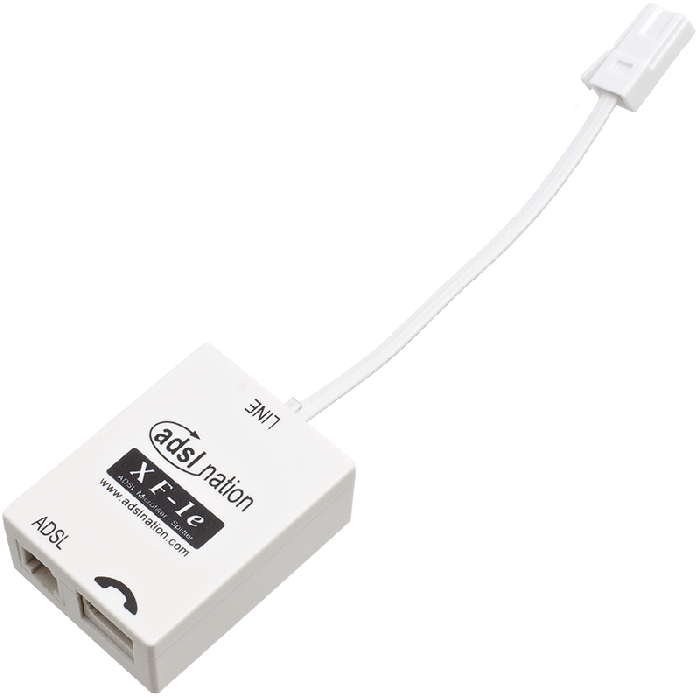

XF-1E ADSL Nation

Black Cat supply the ADSL Nation XF-1E

The XF-1e professional quality microfilter is designed for maximum compatibility & performance.

The XF-1e contains four high quality ferrite cores to ensure that accurate frequency separation is achieved.

Accurate separation ensures that overspill is minimised. Overspill is where the ADSL signal leaks in to the voice frequency range or speech interferes with the ADSL signal. The high quality, low tolerance components used in the XF-1e ensure that your ADSL service will run at maximum performance and that your telephone calls will be free of interference.

Designed to exceed the the BT SIN 346 v2.2 guidelines for UK microfilters the XF-1e offers complete compatibility with BT services such as CLI (Caller ID). The XF-1e is designed for maximum compatibility with even the most complex telephone equipment. Fully compatible with DECT cordless phones and PABX systems. Also suitable for ADSL, MaxDSL, VDSL, ADSL2 and ADSL2+.

BC-XF-1E  ADSL Nation XF-1E ADSL Line Filter.



Black Cat manufacture a wide range of RJ11,RJ12 to BTLJU cables to any length and pinout that you may require.

ADSL RJ11 Cables


ADSL RJ11 Cables

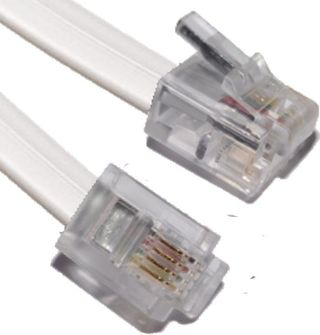

UnMoulded RJ11 to RJ11 FLAT Straight-Through Cable

  • 4 Wire Straight-Through
  • Flat Cable
  • Custom Lengths Available On Request


ADSL RJ11 - R11 Grey  Part: BC15-081

ADSL RJ11 - R11 Black  Part: BC15-081

ADSL RJ11 - R11 White  Part: BC15-081

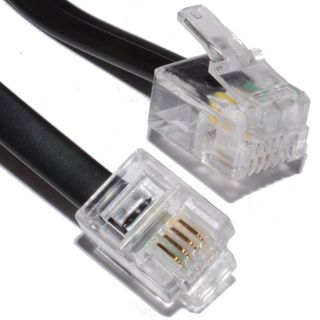

Moulded ADSL High Speed RJ11 to RJ11 (Straight-Through) Cable

  • ADSL RJ11 - R11 Black
  • Part: BC15-187

  • ADSL RJ11 - R11 White
  • Part: BC15-187
  • 4 Wire Straight-Through
  • Round Cable
  • 10 times faster than a regular phone cable to get the most out of your modem
    Category 5 structured cable transmits data up to 100Mbits/sec;
  • Supports analogue or digital (DSL/ISDN) applications;
    Snagless moulded strain relief provides added strength with flexibility even under extreme conditions
  • Compatible with all modem speeds. RECOMMENDED FOR ADSL 2+


RJ45 to LJU Telephone Adaptors

We supply RJ45 to BT socket Secondary, Mastered and PABX adaptors in 6" tailed type or direct plug in type. RJ1BT versions also Availible.




Telephone Line Cords

Black Cat Cables manufacture a wide range of Line Cords in Black, Grey or White any type of BT Plug  to RJ11-RJ12. We also supply Cord Coiled handset cords in Black,White, Ivory or Grey.

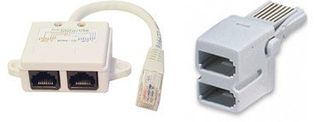

Telephone Adaptors

A full range of adaptors and interconnection telephone extension cables are offered. Double adaptors . Black Cat can also offer you bespoke telephone adaptors offering you the chance to run 4 x one pair telephones over one standard Cat5E cable outlet.

 For more information, please contact sales on 01494 711820 or sales@blackcatcables.com
