Networking Cables
CAT5, CAT6, CAT6/6A Cables
Black Cat holds stock in our warehouse of the common and fast moving Cisco type cables for immediate dispatch. However as a UK based manufacturer Black Cat can offer custom made lengths for 95% of the Cisco range of copper and fibre cables.

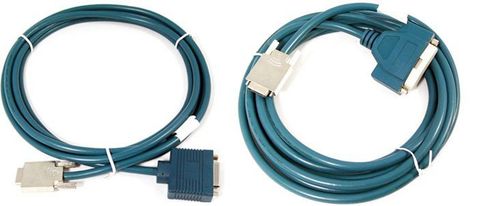

Very popular are the longer length X.21 cables, Cisco standard length for the
CAB-X21MT and CAB-SS-X21MT is 10ft/3m. To save joining cables that are short and don't reach Black Cat offer 5m,10m and 15m from stock as well as being able to manufacture any length to customers requirements.
Another very popular range of cables are the DTE to DCE back to back cables. These are ideal for Cisco exam work, teaching, testing and labwork. We offer the Standard Serial LFH60 to Serial LFH60, Smart Serial to 26 way to 26 way and a combination of the two.
A full range of serial and Smart Serial Cisco cables are kept in stock, octopus cables such as CAB-OCT-X21MT and CAB-OCTAL-ASYNC, Coax cables including Aironet cables such as AIR-CAB050LL-R and AIR-CAB100ULL-R are usually in stock or can be made in custom lengths in a few days. Cisco compatible Inifiniband cables like CAB-INF-28G-10M and the full range of stacking cables like CAB-STACK-1M are also kept in stock.
Black Cat also offers a wide range of fibre cables compatible with Cisco like the
CAB-GELX-625= Mode Conditioning Patchcord and CAB-SMF-Y-SC.
Cat6/Cat5e and Cat Straight and Crossover cables. Black Cat keeps stock of standard length and coloured Cat5e and Cat6 patchcords. As a UK manufacturer we can offer custom built lengths, colours, strain relief boots and custom pinouts.
Cat5 Telco Cables AMP or Lucent Avaya type. Black Cat offers Cat3, Cat5 and now new Cat5E 50 pin telco cables with Avaya/Lucent connectors or AMP. We can provide Male Plugs or Female Sockets and a choice of 90,110,120 and 180 degree covers and left and right cable entry to suit customers requirements.We also supply 24 and 48 way Telco Patch Panles for 10/100 Base T & New 1000 Base T fot Gigabit.

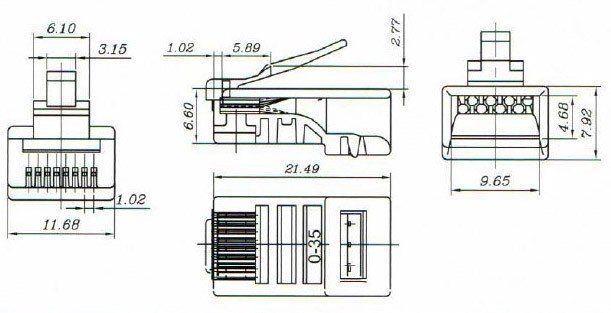

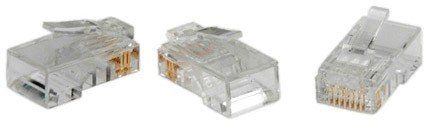

CAT6 Modular Plug Without Load Bar Fast Termination
Black Cat now offers a unique CAT6 UTP Plug without a load bar, reducing termination time taken by 50% for a normal CAT6 Plugs with load bar. So now much the same as a standard CAT5E Plug.
The Plugs have 50 micron Gold Pins and are RoHS Compliant & PASS a CAT6 Fluke Channel test for patch cords when tested on the Fluke DTX-1800.
- For round CAT6 Stranded Wire
- Standard RJ45 Crimp Tool used
- Unshielded plug for CAT6 Solid also available
- Shielded plug for CAT6 Stranded & Solid also available
- Gold Plating 50u
- Works with 24awg to 26awg Cable

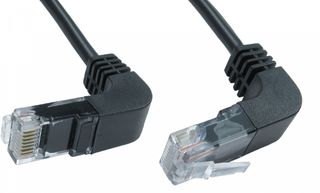

CAT5E UTP Right Angle Cables (UP & DOWN)
The right angle to right angled Cat5e cable is ideal for situations where space is limited or angled connectors are prefered. The position of the cable from the angle will either be going up or going down. The position of the port is irrelevant..
RJ45 Right Angle to Right Angle Plug Cables
& RJ45 Straight to Right Angle Plug Cables

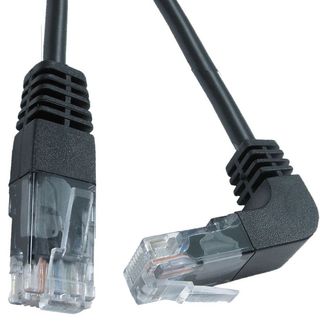

The straight to right angled Cat5e cable is ideal for situations where space is limited or angled connectors are prefered. The position of the cable from the angle will either be going up or going down depending on the position of the port it is going in. If the position of the latch on the cable is pointing down, the cable will point upwards. If the position of the latch on the cable is pointing upwards, the cable will point downwards...
RJ45 Right Angle to Right Angle Plug Cables
0.5M Part: BC-
2M Part: BC-
3M Part: BC-

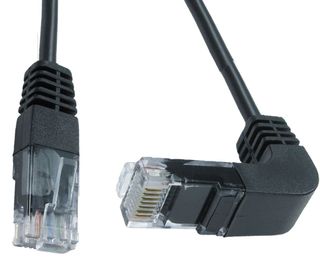

RJ45 Straight to Right Angle Plug Cable (UP Angle)
0.5M Part: BC-
1M Part: BC-
2M Part: BC
3M Part: BC-
RJ45 straight to Right Angle Plug
Cable (Down Angle)
0.5M Part: BC-
1M Part: BC-
2M Part: BC
3M Part: BC-
CAT5E UTP Patch Cable (Flush Moulded PVC)
Category 5e U/UTP cables are manufactured, tested and verified to the ISO11801 and EIA/TIA standards for enhanced performance. They are constructed with RJ45 plugs (50 micron gold) and quality UL approved Stranded.
Available in up to 17 lengths & 10 different colours.
Lengths Available: 0.3m, 0.5m, 1m, 1.5m, 2m, 2.5m, 3m, 4m, 5m, 6m,
7m, 8m, 10m, 15m, 20m, 25m, 30m
XX Is for Length
RD Is for the Colour
Applications
10 Base-T
100 Base-TX
1000 Base T Gigabit Ethernet
155 / 622 Mbps ATM
Specification
Conductor – Cu Bare Copper 7/0.2
Jacket – PVC Jacket
24 AWG
Part: BC15-002-XX-GE Grey
Part: BC15-002-XX-RD Red
Part: BC15-002-XX- BU Blue
Part: BC15-002-XX-GN Green
Part: BC15-002-XX-YN Yellow
Part: BC15-002-XX-BE Black
Part: BC15-002-XX-VT Violet
Part: BC15-002-XX-WT White
Part: BC15-002-XX-OR Orange
Part: BC15-002-XX-PK Pink
Lucent/Avaya Siemon Style S110 Patch Cables
Black Cat manufactures S110 patch cords using fully compatible Siemon S110 Cat5e connectors, making them suitable for all standard 110 patching applications.
Please contact our sales staff with your specification, 1pair, 2pair, 3pair, 4pair S110 to S110 or S110 to RJ45 plug letting us know the colours and options to obtain a price for your requirements.
All leads are made to order by our professional dedicated staff and are tested to ensure thay conform with the Cat5E specifications.

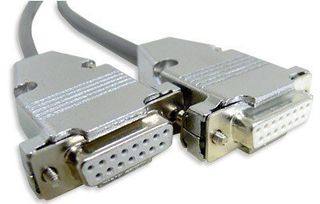

X.21 / V.11 Cables
Black Cat offers standard X21 interface cables with the standard DB15 connector, ideal for use with Cisco, Nortel and BT Kilostream NTUs. We offer fully wired Male to Male, Female to Female and Male to Female extension cables.
As well as standard fully wired cables we offer crossover (Null Modem Cables) and custom pinout cables to customers specification.

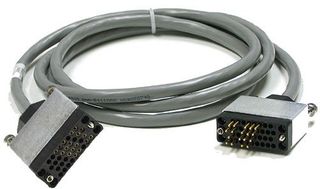

V.35 Cables
Black Cat offers standard V.35 interface cables with the standard 34 way M.R.A.C connector, ideal for use with Cisco, Nortel equripment We offer fully wired Male to Male, Female to Female and Male to Female extension cables. As well as standard fully wired cables we offer crossover (Null Modem Cables) and custom pinout cables to customers specification.
RS232 / V.24 Interface Cables
Black Cat offers standard RS232 / V.24 interface cables with the standard DB25 connector, ideal for use with Cisco and any Asynchronous and Synchronous serial cables. We offer fully wired Male to Male, Female to Female and Male to Female extension cables. As well as standard fully wired cables we offer crossover (Null Modem Cables) and custom pinout cables to customers specification.

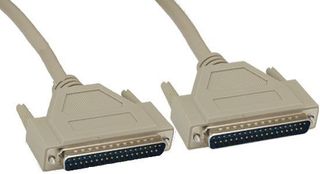

RS449 Interface Cables
Black Cat offers standard RS449 (sometimes referred to as V.36) interface cables with the standard DB37 connector, ideal for use with Cisco and any Asynchronous and Synchronous serial cables. We offer fully wired Male to Male, Female to Female and Male to Female extension cables. As well as standard fully wired cables we offer crossover (Null Modem Cables) and custom pinout cables to customers specification.

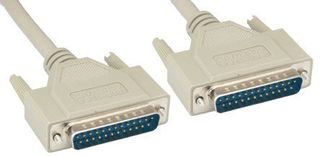

RS530 Interface Cables
Black Cat offers standard RS530 interface cables with the standard DB25 connector, ideal for use with Cisco and any Asynchronous and Synchronous serial cables. We offer fully wired Male to Male, Female to Female and Male to Female extension cables. As well as standard fully wired cables we offer crossover (Null Modem Cables) and custom pinout cables to customers specification.
Loop Back Plugs
Ideal for Testing X21, V24, V35, E1, T1, RJ45 (Ethernet) or made to Custom Spec
Part: BC15-186

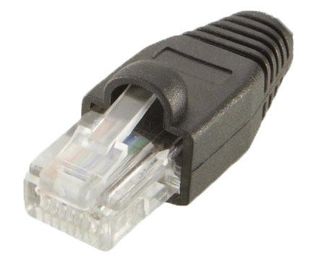

RJ45 Ethernet Loopback Plug
with Black Bubble boot
(Fully Wired)

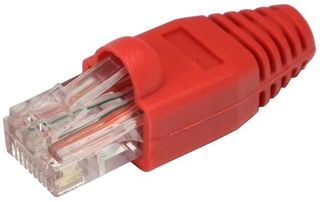

Part: BC15-145
RJ45 T1 / E1 Loopback Plug
with Red Bubble boot.
Part: BC11-564
X21 DB15 Loopback Plug
with Diecast Metal Hood
Dialogic Eiconcard
VHSI (V.24) Male to DB25 Male DTE Cable P/N 300-078

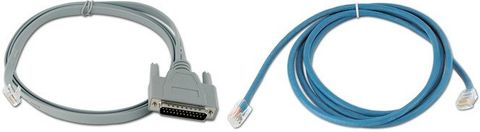

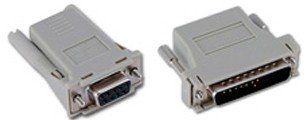

Avocent / Cyclades Cables & Adapters
In a modern data center environment there are many types of equipment with different requirements in terms of shape and size of the RS-232 console ports. The most typical examples are traditional 25 pin RS-232 (DB-25), 9 pin RS-232 (DB-9) and RS-232 on RJ-45 connectors as used by Avocent / Cyclades, Sun, Cisco and other vendors. In order to address this requirement, Avocent / Cyclades offers a comprehensive range of cables and adapters to allow the connection of any type of equipment to their range of Console Servers.
All of Black Cats Avocent / Cyclades' cables and adapters are compatible with RJ-45 wiring installations as used in data centers today and are designed to fit the standard console ports of servers, network equipment, modems and infrastructure equipment such as HVAC and UPS.
ADB0017 - RJ-45F to DB-25F crossover adapter
ADB0025 - RJ-45F to DB-25M crossover adapter
ADB0036 - RJ-45F to DB-9F crossover adapter
ADB0037 - RJ-45F To DB-9M crossover adapter
ADB0039 - RJ-45F To DB-9M crossover adapter
ADB0040 - RJ-45F to RJ-45M sun/cisco crossover adapter
ADB0200 - RJ-45F to DB-9F straight-thru adapter
Cables
CAB0017- RJ-45M to DB-25F crossover cable (6ft)
CAB0018 - RJ-45M to RJ-45M straight-thru CAT5 cable (7ft)
CAB0025 - RJ-45M to DB-25M straight-thru cable (6ft)
CAB0036 - RJ-45M to DB-9F crossover cable (6ft)
CAB0045 - RJ-45M to RJ-45M Sun/Cisco crossover cable (10ft)
CAB0046 - RJ-45M to DB-25M crossover cable (6ft)
CAB0286 - DB-9F to DB-9F crossover cable (6ft)

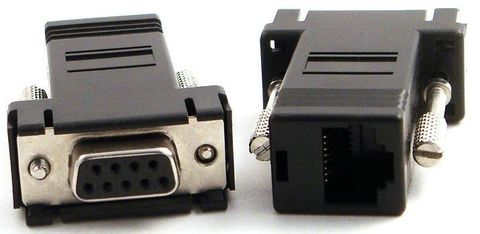

Compatible Opengear Adapters
319014 - DB9F to RJ45 straight serial adapter
319015 - DB9F to RJ45 crossover serial adapter
319016 - DB9M to RJ45 straight serial adapter
319017 - DB9M to RJ45 straight serial adapter
319018 - DB9F to RJ45 crossover serial adapter
319019 - DB9F to RJ45 straight serial adapter
319000 - DB9F to RJ45 straight serial adapter
319001 - DB9F to RJ45 crossover serial adapter
319004 - DB9M to RJ45 straight serial adapter
449016 - RJ45 serial adapter for Cisco/Sun
Juniper Compatible Network Cables
Serial Interface Cables:
The 2-Port Serial PIM requires the customer to purchase serial cables separately. The available serial cables are listed below.
JX-CBL-EIA530-DCE EIA530 cable (DCE) 10 feet, 3 meters Female
JX-CBL-EIA530-DTE EIA530 cable (DTE) 10 feet, 3 meters Male
JX-CBL-RS232-DCE RS232 cable (DCE) 10 feet, 3 meters Female
JX-CBL-RS232-DTE RS232 cable (DTE) 10 feet, 3 meters Male
JX-CBL-RS449-DCE RS449 cable (DCE) 10 feet, 3 meters Female
JX-CBL-RS449-DTE RS449 cable (DTE) 10 feet, 3 meters Male
JX-CBL-V35-DCE V.35 cable (DCE) 10 feet, 3 meters Female
JX-CBL-V35-DTE V.35 cable (DTE) 10 feet, 3 meters Male
JX-CBL-X21-DCE X.21 cable (DCE) 10 feet, 3 meters Female
JX-CBL-X21-DTE X.21 Cable (DTE) 10 feet, 3 meters Male

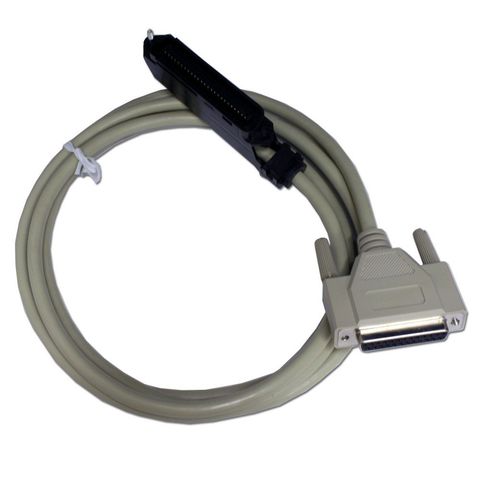

N0121357 / A0202786 MDF Cable 75ft (22.8m)
N0121355 / A0068238 MDF Cable 50ft (15.24m)
N0114513 / A0100025 MDF Cable 25ft (7.62m)
N0115630 / A0105353 MDF Cable 15ft (4.57m)
N0115632 / A0231204 MDF Cable 10ft (3m)
3CWE580 6ft (1.8m)
3CWE581 20ft (6.1m)
3CWE582 50ft (15.24m)
3CWE810 6ft (1.5m)
3CWE811 20ft (6.1m)
3CWE812 50ft (15.24m)

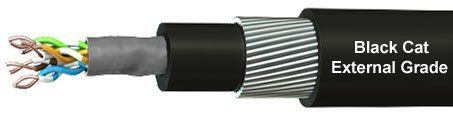

CAT5E & CAT6 UTP External Network Cables
Designed for fixed installations, the Black Cat range of duct grade or armoured Cat-5E & Cat-6 cables have heavy jackets of polyethylene to protect against moisture and give the cables extra strength.
External Cat 5E and external Cat 6 are ideal for running through ducts, up the side of a building or up masts. The armoured version is great for direct burial or vandal-plagued installations.
These cables are supplied on drums.

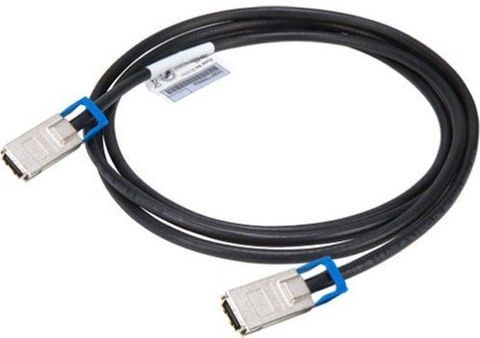

CX4 10Gb Infiniband Cable
Compatible with Cisco, IBM, 3COM, D-Link and HP

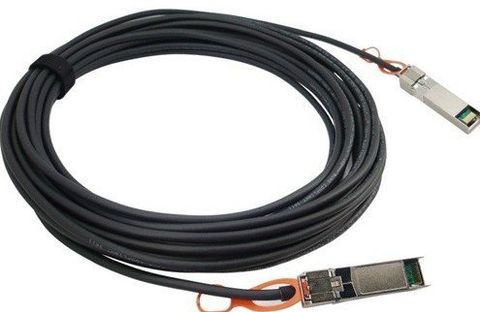

SFP+ Passive and Active Cables
Black Cat supply passive and active SFP+ Cables in various lengths and they are compatible with Cisco, Arista, Intel and Dell.
SFP+ Passive Cables
BC-CAB-SFP-10G-0.5
BC-CAB-SFP-10G-1
BC-CAB-SFP-10G-1.
BC-CAB-SFP-10G-2
BC-CAB-SFP-10G-2.5
BC-CAB-SFP-10G-3
5BC-CAB-SFP-10G-
BC-CAB-SFP-10G-7
5BC-CAB-SFP-10G-1
SFP+ Active Cables
BC-CAB-SFP-10GA-7
BC-CAB-SFP-10GA-10
BC-CAB-SFP-10GA-15

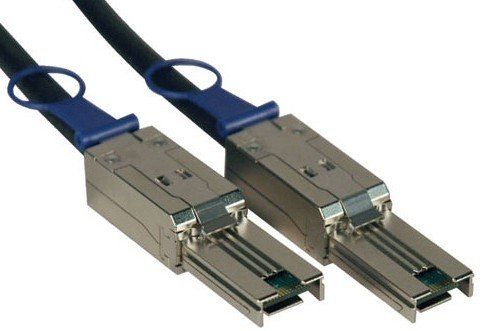

Mini SAS 26P Cable SFF-8088 to SFF-8088 Cable
Black Cat supply Serial Attached SCSI (SAS) is a high-speed data storage interface designed for high-throughput and fast data access. Intended primarily for data storage centers, the SAS interface is backwards compatible with SATA. This allows the user to mix more expensive, lower-capacity SAS drives for applications that require faster data access and higher reliability, with lower-cost, higher-capacity SATA drives for applications with lower access speed requirements. SAS Cables with connectors for every possible application, both internal & external.
- Connector A: SFF-8088 (Universal Key)
- Connector B: SFF-8088 (Universal Key)
- Wire: AWG28 Copper, Type: Passive
- Data Rates: Up to 6Gbps, Compliant: Mini SAS MSA
- Applications: Storage Area Networks (SAN) / SAS
BC-SFF-8088-SFF-8088-0.5
BC-SFF-8088-SFF-8088-1M
BC-SFF-8088-SFF-8088-2M
BC-SFF-8088-SFF-8088-3M
BC-SFF-8088-SFF-8088-4M
BC-SFF-8088-SFF-8088-5M
BC-SFF-8088-SFF-8088-7M
BC-SFF-8088-SFF-8088-10M
IEEE-488 GPIB Cables
IEEE-488 GPIB Normal/Nomal 1M - 8M

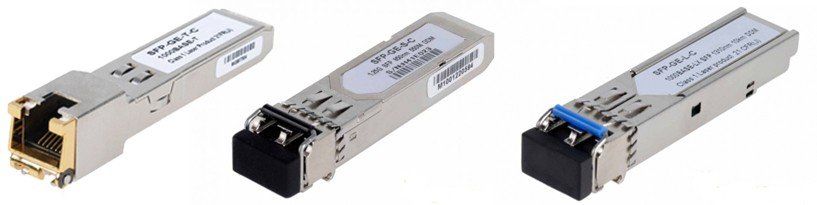

SFP-GE-T-C
SFP-GE-L-C
Cable exceeds IEEE-488 standards for connecting peripherals where EMI is an issue 30 microinch gold contact plating provides reliable connections with repeated mating cycles. Superior crimped ferrule strain relief prevents unsightly separation common with other cables. Aluminum nickel-plated shells with overlapping seams are corrosion resistant and inherently immune to EMI leakage Color: Gray
For More Infomation Please contact sales on 01494 711820 or sales@blackcatcables.com
